This is the King of 4WD models and renowned all over the world for its durability and comfort in the toughest of conditions. This model combines perfectly the sometimes competing needs of off-road capability and on-road refinement. This is a top of the range model which doesn’t mind getting its hands dirty.
TGS stocks both Standard and GX-R models. We also have a version with automatic transmission, as well as diesel and petrol variations.
Model code | URJ202R-GNTAKQ |
Drive | 4x4 |
Transmission | Auto |
Speed | 6 |
Front suspension | Double Wishbone |
Rear suspension | Multi-link |
Front brakes | Disc |
Rear brakes | Disc |
Number of doors | 5 |
Number of seats | 8 |
Seat material | Fabric |
Colour | White |
Engine model | 1UR-FE |
Displacement | 4608 |
Number of cylinders | 8 |
Maximum power (kw/rpm) | 227/5500 |
Maximum power (bhp/rpm): | 304/5500 |
Maximum torque (Nm/rpm) | 439/3400 |
Electrics (volts) | 12 |
Fuel Type | Petrol |
Fuel tank capacity (Litres) | 93+45 |
Air Cleaner: square with Pre-cleaner | Fuel cut system |
Battery: 80D26 | Fuel filter - for Gasoline (in line) |
Catalytic converter | Fuel pump |
Clean air filter (pollen removal filter) | Fuel tank - with sub tank |
Differential - Centre full time 129M (TORSEN LSD) w/o sensor | Hood silencer |
Differential - front SD22A I=4.300 | Power steering |
Differential - rear BD20B 4.300 | Severe usage package |
Emission Controls - EURO 5 (w/OBD) | Speed limiter: 195 KM/H |
Engine coolant | Suspension: KDSS (Kinetic Dynamic Suspension System ) |
Engine oil cooler | Transmission oil cooler - air & water cooled |
Engine under body protection | Washer fluid - Methanol full fill |
Number of seats | 8 |
Front seating arrangement | 1 + 1 |
Front seating type | Separate |
Rear seating arrangement | RR1: 3 RR2: 3 |
Rear seating type | Bench |
Weights (kg) | |
---|---|
Kerb weight | 2625 |
Gross Vehicle Weight | 3350 |
Payload | 725 |
Dimensions (mm) | |
---|---|
Length | 4950 |
Width | 1980 |
Height | 1890 |
Wheelbase | 2850 |
Ground clearance | 230 |
Front tyres | 285/65R17 |
Rear tyres | 285/65R17 |
Tyre type | Radial |
A/T shift lock system: electric | Interior rear view mirror (day and night) |
Accessory power outlet: FR:(DC12)+RR(DC12)+DK(AC220) | Key reminder warning |
Air conditioning: auto (FR. LH/RH Independent Control) & Manual RR Cooler | Light reminder warning with buzzer & auto cut |
Assist grips - front & rear | Luggage holding belt w/o cargo hook |
Carpet floor covering | Meter illumination control |
Clock: digital | Occupant classification sensor - P seat sensor |

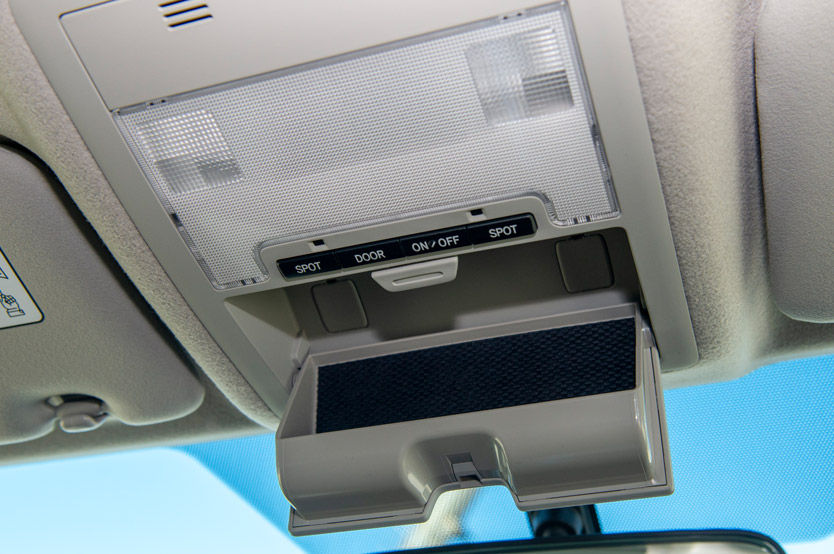

Coat hooks 2 | Overhead console |
Console box | Personal lamp: front |
Cool Box | Power Windows all doors: auto up/down, w/jam protection |
Cup holders: front & rear | Pre-wiring for audio with 6 speakers and antenna |
Dash silencer | Push button ignition - SMART START |
Door ajar warning | Rear window defogger |
Door armrests: front & rear | Room Lamp |
Door courtesy lamp | Seat belt warning buzzer (D&P) |
Door pocket: front & rear | Seat belts: 8 (FR 3P x2, RR1 3P x3, RR2 3P x3 ) |
Door scuff plate | Seat: 5DR: 8-RR1: 60:40(slide, walk in, rec)+ RR2: 50:50 (3P. Tilt up) |
Economy meter | Seat: Front, lumbar support (D power slide) |
Engine monitor warning (OBD) | Seat: Front, slide (D&P - 240mm) |
Engine oil level warning | Seat: Front, vertical adjuster Driver (Manual) |
Floor silencer (around front pedals) | Seatback pockets (D&P) |
Footrest - Driver | Shift lever leather w/knob silver painted |
Glove box | Speedometer km/h |
Headlamp levelling - auto | Steering column-Tilt & Telescopic |
Headrests: front (D+P) | Steering switch (Audio+Tel) |
Headrests: RR1 (3) RR2 (3) | Sun visor with illuminated vanity mirror, adjustable with sub visor |
Heater: auto (Fr. LH/RH Independent Control) & Manual RR Cooler | Transfer - High 4 - Low 4 4WD selector switch |
High mount stop lamp | Washer fluid warning |
Illuminated entry system | Water temperature gauge |
Antenna - glass | Outside rear view mirror - power (body colour) |
Body rust protection | Rear spoiler |
Bumper: front - painted | Rear window wiper - intermittent + washer |
Bumper: rear - standard + towing hook | Side glass - grey privacy |
Clearance lamp | Side steps |
Fog lamps - front with driving lamps | Towing Hitch |
Fuel cap w/tether | Towing hook: front and rear, closed |
Headlamp: LO:BI-LED HI:Halogen | Towing package |
Intermittent wipers | Windshield - green laminated |
Lift-up type back door | Wire harness for trailer |
Mud guards |
Air Bag System: D+P(Dual Stage/D:weight sensor)+CSA(FR+2nd+3rd)+Side (FR) | Horn |
Anti-theft system: immobiliser | Isofix anchor points |
Central door locking - D side one motion | Vehicle Stability Control - ABS+BA+EBD+VSC+A-TRAC+HAC+CRAWL CONTROL |
Child lock (rear doors) | Wireless door lock - Smart entry, push start, hazard answer |
Clearance & back sonar |
Grade package: GX-R | Tool Kit & Jack |
Owner's manual - English |
